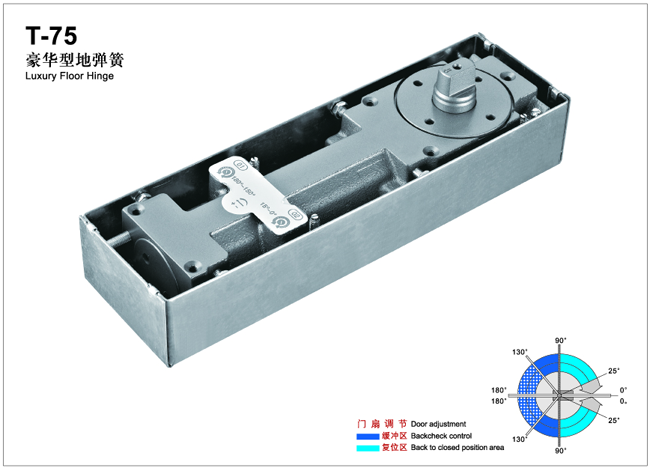

Floor Hinge T-75

1. Plate finish: Mirror, Satin

2. Materials: Iron

3. Max door width: 1200mm

4. Max door weight: 150kgs

5. Available for steel and wooden doors, 8-12 toughened glass door

6. Function: One way open at 180^o, 90^o and 180^o two-way positioning

7. Feature: Switching for 500,000 time

Floor spring Installation steps:

A. Draw lines and make floor spring pivot center and door-nip pivot coincide with each other

B. Drill holes on the floor accordng to the instructions, the sizes of the holes must tightly match the floor spring.

C. Place the floor spring into the holes and position it.

D. Raise the door leaf installed with door-nlp, and insert the floor spring pivot into the hole of the door leaf

E. Adjust the screws at three directions. Make them vertical and the upper and lower pivot center coincide with each other.

F. Adjust the speed of door closing.

G. Put the decoration cover on the floor spring.
